CAPS 500L Vertical Air Receiver c/w N1 & N2 Socket Welded Foot, Wind Region D

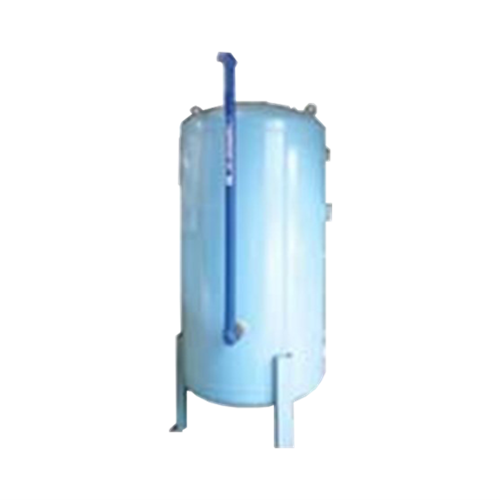

500L Vertical Air Receiver (VR500-1550SRD)
Preorder (ETA 8-12 weeks)
$5544.00
inc GST
Important Information
The figures provided in the calculation are to be used as a guide only and may differ depending on your specific needs and market conditions.
The repayments are based on a Chattel Mortgage Facility over 60 months with no balloon. Please contact your local branch should you wish to discuss alternative finance products and term options, as we have flexible options available that can fit your budget or requirements.
Increase value
Decrease value
-
Description
-
Features
-
Dimensions
-
Shipping & Returns
Air receivers help to eliminate pulsation in the discharge line, reduce load cycles, and act as storage. Selecting an appropriately sized receiver to match your compressed air needs are important.
CAPS air receivers are designed to Australian design code AS1210 and manufacturing code AS3920.1.
The CAPS VR500-1550SRD air receiver is a 500 litres tank with a design pressure of 1,550kPag
-
- Australian Made Quality Air Receivers
- Vertical Mounted Design
- Over 300 Registered Air Receiver Designs with Capacities up to 50000 L (50 m³)
- Surface Protection to CAPS Standard Paint System (Internal: Nil / External: Wire Brush Preparation, Red Oxide Primer & Enamel Top Coat) – Other Surface Protection System to suit Customer Specifications / Applications available (Optional)
- CAPS Standard Air Receivers are Designed & Manufactured to Australian Standard AS1210 Class 3
- As Standard Air Receiver Designs cannot suit all Applications, CAPS Projects Team & Manufacturing Group can also Design & Manufacture Purpose Built Air Receivers / Pressure Vessels (POA):
- To Other International Standards (ASME, EU, etc.)
- To suit Special Customer Applications (Large Air Filter Housing, Gas Scrubber Vessels, Surge Vessels, Vacuum Vessels, etc.)
- To suit Special Customer Specs
- CAPS Standard Air Receiver Kit
- Pressure Gauge
- Pressure Relief Valve (Sized to Suit Compressor / System Flow Capacity)
- Manual & Auto Drain Valve
- CAPS Standard Testing & Documentations (AutoCAD Drawings, Statutory Inspections & Certifications) are Included
- Special Documentations (ITPs, QA, etc.) to Customer Specifications available (Optional)
Approx. Shipping Dimensions LWH: 2310mm x 710mm x 710mm
Below is a guide only:
- Air Bag deliveries - allow 2-3 business days
- Australia Post Express parcels – depending on your location, allow approx. 4-5 business days
- All other deliveries - allow 5-10 business days
- Air Compressors and Generators - allow up to 10 business days (Australia only)
- Outside Australia - please allow 5 - 15 business days
Orders are dispatched within 24-48 hours of payment clearing (during business days and if all item/s are in stock).
Store Pickup:
This option allows you to collect at your nearest CAPS branch. As all products are stored in our WA warehouse, please allow 2-4 business days for your order to reach your nearest CAPS branch first. Your local branch will contact you as soon as your order arrives. If you are based in WA, orders will normally be ready to collect within 1 business day.
Returns:
CAPS are happy to accept returns & exchanges on tools, parts and accessories within 30 days of the order being placed. The item just needs to be unused, in the original packaging, and you must have proof of your purchase. To request a refund or exchange, please call us first on 1800 961 943, or email returns@caps.com.au.
For returns on larger equipment, please contact us first as conditions apply.
Return shipping is at the buyer's expense, so please choose carefully. Please read full T&C's for more information.
